DC Solar Air Conditioners

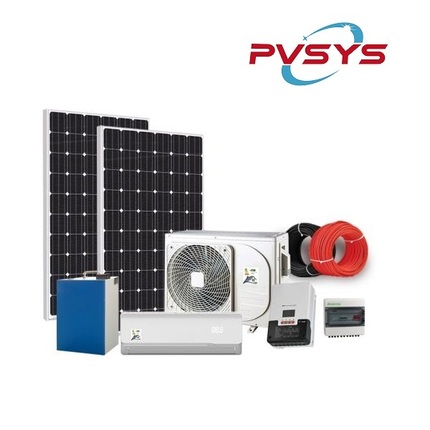

9000btu-24000btu Off Grid DC Solar Air Conditioners

Pvsys 9000btu-24000btu Solar Air Conditioner is the perfect solution for people who live around the tropics and areas which suffered from heat from the sunlight. Also, in the high-dimensional region, the sunshine duration in summer would be much longer than the normal region, further, in this particular time of the greenhouse effect, global temperature has continually increased in the past decades. Summer with sunshine heating and high temperature has been a nightmare to people who live in the high-dimensional region.

Description


Core Technology:

APP smart control,easy to get the meter and data

T3 Tropical 58 degree working

MC4 connector for solar easy installation

Compressor All-in-one packaging design

Brushless DC motor drive technology





Model



PSAC9000-V1

PSAC12000-V1

PSAC18000-V1

PSAC24000-V1

Climate Type

Tropical


T1/T3

T1/T3

T1/T3

T1/T3

Power supply

Battery

DC

DC48V(46~58V)

DC48V(46~58V)

DC48V(46~58V)

DC48V(46~58V)





Rated Cooling



Capacity(T1)

W

2600(1000-3400)

3510(1000-3700)

5070(1200-5250)

6450(2500-7000)



BTU

9000(3400-11600)

12000(3400-12600)

17300(4100-18000)

22000(8500-23900)


Power input(T1)

W

680(180-1060)

980(200-1200)

1450(220-1780)

1840(450-2230)



Rated Heating

Capacity

W

2900(800-3050)

3900(1000-4100)

5250(1200-5500)

7000(2000-7350)


Power input

W

830(160-950)

1130(180-1280)

1400(220-1830)

2050(390-2350)

T1 EER (W/W)/ (BTU/W)

/

3.90/13.20

3.60/12.25

3.50/11.8

3.50/11.85

COP (W/W)/ (BTU/W)

/

3.50/11.90

3.45/11.75

3.75/12.80

3.40/11.70

Dehumidification capacity

L/h

1.0

1.3

1.7

2.5

Indoor noise level (Turbo)

dB(A)

40

42.5

46

50







Indoor unit

Dimension(W×H×D)

mm

840×205×295

840×205×295

1080×330×237

1080×330×237


Packing (W×H×D)

mm

920×290×360

920×290×360

1140×300×382

1140×300×382


Net/Gross weight

Kg

9.0/12.5

9.0/12.5

15.0/18.5

15.0/18.5

Outdoor coil

a.Number of rows

/

1

2

2

2

Outdoor noise level

dB(A)

51

52

55

58







Outdoor unit

Dimension(W×H×D)

mm

802×564×323

802×564×323

802×564×323

900×700×337


Packing (W×H×D)

mm

910×622×405

910×622×405

910×622×405

1006×755×418


Net/Gross weight

Kg

28.0/32.0

32.0/36.0

36.0/40.0

51/56

Refrigerant type

/

R410a

R410a

R410a

R410a

Max Design pressure (Discharge/Suction)

MPa

4.3/1.5

4.3/1.5

4.3/1.5

4.3/1.1

Refrigerant pipinglength

m

3

3

4

4

Application area

8~15

15~20

20~30

32~42
